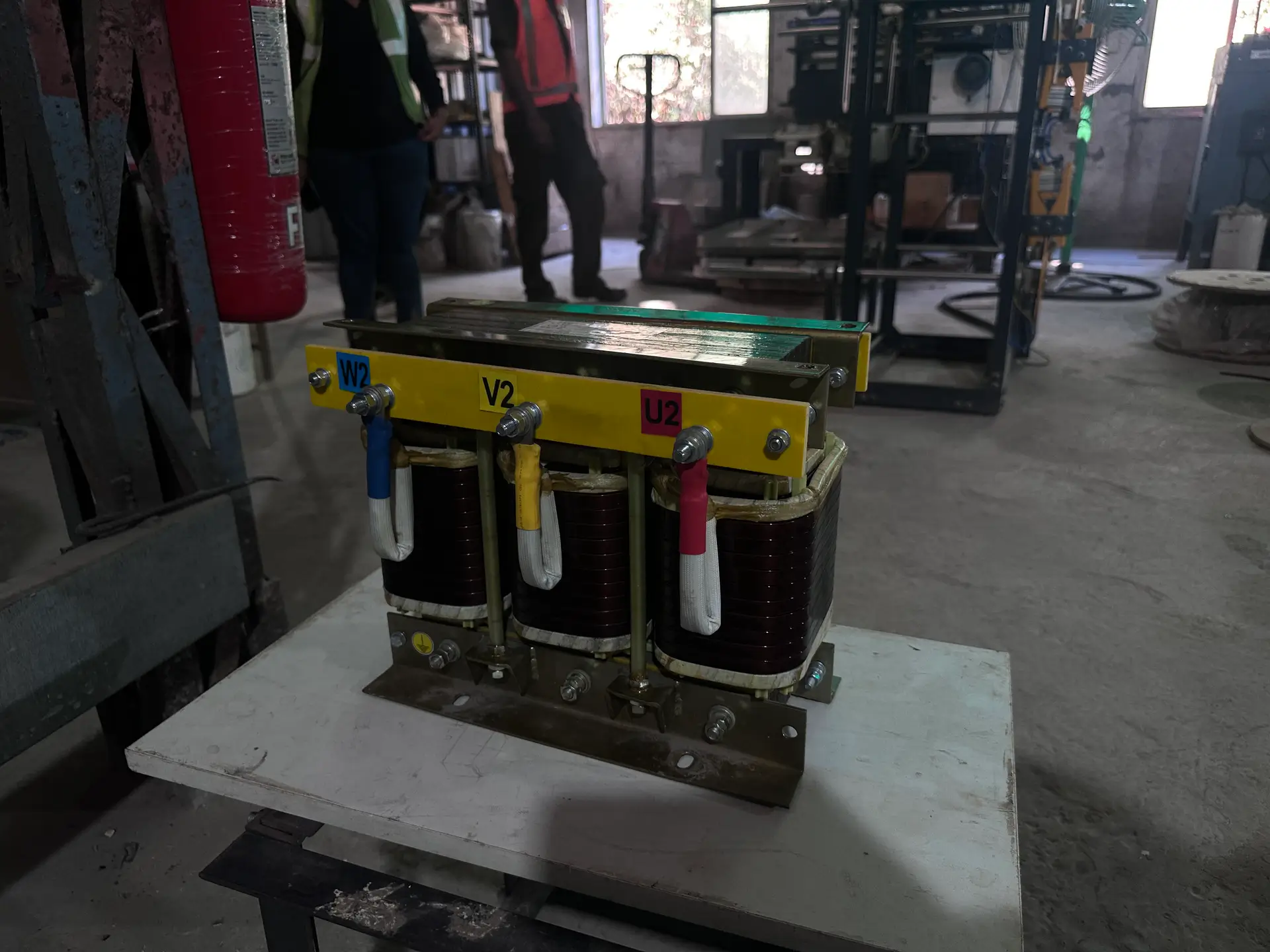

LT Series Reactor

Used in combination with capacitor banks to prevent resonance.

LT Series Reactor

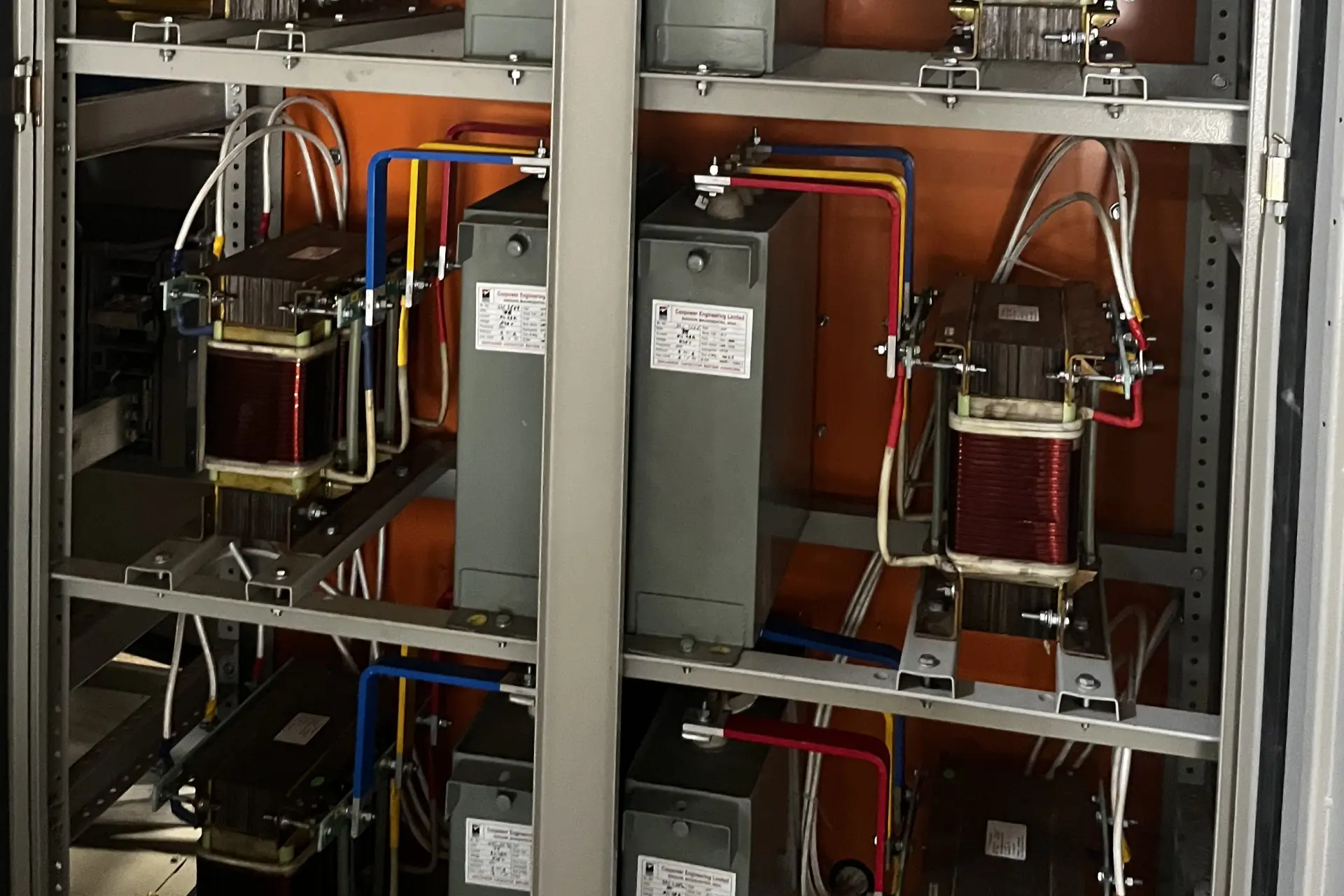

LT Series Reactors are connected in series with LT capacitor banks to block harmonic currents, prevent resonance, and extend capacitor life. In networks with variable frequency drives, solar inverters, arc furnaces, or other non-linear loads, a capacitor bank without a series reactor is at serious risk — the reactor is the difference between a system that lasts decades and one that fails in months.

Industries and Applications

LT APFC Panels

LT RTPFC Panels

VFD-Heavy Panels

Solar-Integrated Networks

Steel Rolling Mills

Commercial Buildings

Hospital & Hotels

Cement & Pharma Plants

Key Benefits

Prevents resonance between capacitor banks and system inductance which can be a major cause of capacitor failure
Protects capacitors from harmonic currents that can overheat and damage them
Acts as a harmonic filter when tuned to specific frequencies (e.g., 189 Hz for 5th harmonic detuning)
Extends capacitor life significantly by limiting harmonic stress
Reduces harmonic amplification in systems with VFDs, soft starters, and rectifiers
Mandatory in harmonic-rich environments , thereby skipping reactor risks premature capacitor failure

Is your capacitor bank protected against harmonics?

Our engineers will assess your network's THD levels and recommend the right reactor tuning factor and rating for your application.
